X-ray film: 30 sec. exposure

ChemiScope photo: 30 sec. exposure

▶  Camera lens: a high-sensitivity cooled CCD camera matching a large aperture lens can capture weak luminous signals.

▶  The UV transilluminator: 302nm UV tubes and shadowless design remove the interference of the shadow, provide a clean background when imaging and cutting gel, and equip professional gel cutting protection device.

▶  The blue light transilluminator: ultra-thin LED blue light transilluminator with 470nm LED cold light source and touch adjustable light intensity and toughened glass surface resistant to corrosion and scratch uses for DNA/RNA gel blue light detection

▶  The white light transilluminator: ultra-thin LED white light transilluminator with LED cold light source and touch adjustable light intensity and toughened glass surface resistant to corrosion and scratch uses for Coomassie brilliant blue -stained and silver-stained protein gels.

▶  Fluorescence modules: equipped with 8-bit electric filter wheel, and can be configured with multiple wavelength filters to realize multi-color fluorescence imaging.

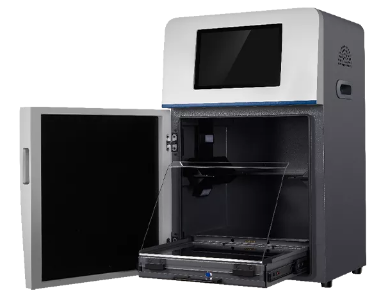

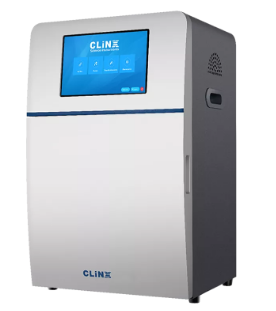

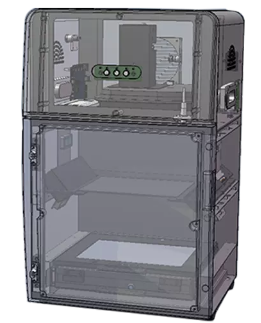

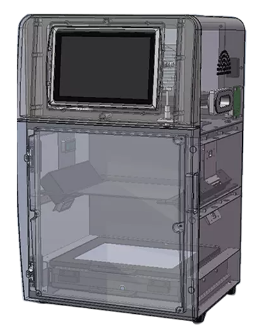

▶  Modular design: ChemiScope 6000 series gel documentation imaging system has a variety of configurations and modules to select from to meet different needs, and support future upgrades.

▶  Operation mode: touch screen/external computer one-button switching scheme to meet habits of different users.

»  Operation: computer control

»  Camera: 6 megapixels, high sensitivity cooled CCD camera

»  Lens: F/0.95 large aperture prime lens, motorized focus

»  Reflective light source: white light reflection (standard), and UV, visible and near-infrared reflective fluorescent light source (optional)

»  Transmitted light source: 254/302/365nm UV, 470nm blue light, white light transmission light source (optional)

»  Filter: 8-position electric filter wheel (standard), and multiple emission light filters (optional)

»  Operation: computer control

»  Camera: 6 megapixels, high sensitivity cooled CCD camera

»  Lens: F/0.95 large aperture prime lens, motorized focus

»  Reflective light source: white light reflection (standard), and UV, visible and near-infrared reflective fluorescent light source (optional)

»  Transmitted light source: 254/302/365nm UV, 470nm blue light, white light transmission light source (optional)

»  Filter: 8-position electric filter wheel (standard), and multiple emission light filters (optional)

»  Operation: computer control

»  Camera: 6 megapixels, high sensitivity cooled CCD camera

»  Lens: F/0.8 large aperture prime lens, motorized focus

»  Reflective light source: white light reflection (standard), and UV, visible and near-infrared reflective fluorescent light source (optional)

»  Transmitted light source: 254/302/365nm UV, 470nm blue light, white light transmission light source (optional)

»  Filter: 8-position electric filter wheel (standard), and multiple emission light filters (optional)

»  Operation: computer control

»  Camera: 6 megapixels, high sensitivity cooled CCD camera

»  Lens: F/0.8 large aperture prime lens, motorized focus

»  Reflective light source: white light reflection (standard), and UV, visible and near-infrared reflective fluorescent light source (optional)

»  Transmitted light source: 254/302/365nm UV, 470nm blue light, white light transmission light source (optional)

»  Filter: 8-position electric filter wheel (standard), and multiple emission light filters (optional)

ChemiScope image capture and analysis software integrates camera automatic control, image acquisition, light source control, and lens adjustment. It has a modular design and a friendly and succinct interface.
The software includes ChemiScope image capture software and ChemiScope image analysis software, both of which are independently designed and developed by Clinx Science Instrument Co., Ltd., and Clinx Science Instrument Co., Ltd. obtained the software intellectual property rights.

ChemiScope Image Capture Software

‣  The software provides a user management system with multi-level user rights, which is convenient for instrument use and management;

‣  Expose accurately, one touch and shoot, and save automatically;

‣ Accumulate images (1~99 frames) automatically and continuously and capture images in time series

‣ Take a Marker image and superimpose it with the chemiluminescence image;

‣  High resolution and high sensitivity are optional;

‣   Optimize the image, such as image rotation, cropping, invert color, etc.

‣   Save images, user information, shooting information, etc. as PDF format

‣  Batch export images in TIFF, JPG and other formats

ChemiScope Image Analysis Software

‣  Automatically identify electrophoretic bands, and add, delete and adjust bands;

‣  Automatically calculate the optical density integral value and display peak graph of each band, which is convenient to calculate the molecular weight of each strip;

‣  Calculate the optical density of the designated area, which is suitable for protein quantitative analysis;

‣  Automatically remove the background mode to get accurate and optimized image analysis data;

‣  The analysis result can export the designed area to Excel File
