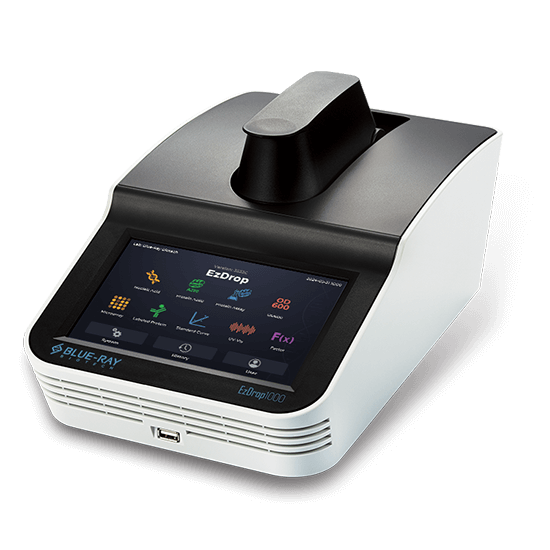

EzDrop 1000 Micro-Volume UV/Vis Spectrophotometer accelerates your research efficiency. It can complete the measurement of a sample concentration speedily in 3 seconds. EzDrop 1000 provides dynamic full-spectrum 190-1000 nm detection, while the sample window is equipped with Nano hydrophobic coating, ensuring highly accurate results.

Coming with an intuitive operation screen, EzDrop 1000 makes each step fast and simple, helping you complete the measurement effortlessly.

Specifications

Micro-Volume Mode

• Minimum Sample Volume：1 µL
• Pathlength：0.5 mm / 0.05 mm
• Light Source：Xenon flash lamp
• Detector Type：2048 element CMOS
• Wavelength Range：190 - 1000 nm
• Wavelength Accuracy：±1.0 nm
• Spectral Resolution：1.5 nm (FWHM at Hg 253.7 nm)
• Absorbance Precision：Raw: 0.0015 A (0.5 mm); 0.03 A (1 cm equivalent)
• Absorbance Accuracy：1.5% at 1.0 A at 300 nm
• Absorbance Range (1 cm equivalent)：0.04 - 400 A
• Detection Range：dsDNA: 2 - 20000 ng/µL; BSA: 0.06- 600 mg/mL
• Measurement Time：< 3 seconds

Software

• Operating System：Custom Linux based OS
• PC Software Requirement：Windows® 7, 10 and 11, 64 bit

General

• Display：7” touch screen, 1280*800 high-definition color display
• Connectivity：USB-A port x1 (Data output); USB-B port x1 (PC connection)
• Footprint Dimensions (W x D x H)：206 x 333 x 166 mm (8.1 x 13.1 x 6.5 In.)
• Weight：3.3 kg (7.3 lbs.)
• Glove Compatibility：All common lab gloves
• Internal Storage：32 GB flash memory
• Operating Voltage：Input: AC 100-240 V, 50/60 Hz; Output: DC 24 V, 2.08 A
• Certifications：CE
