High-Throughput Triple-Block Gradient PCR Thermal Cycler

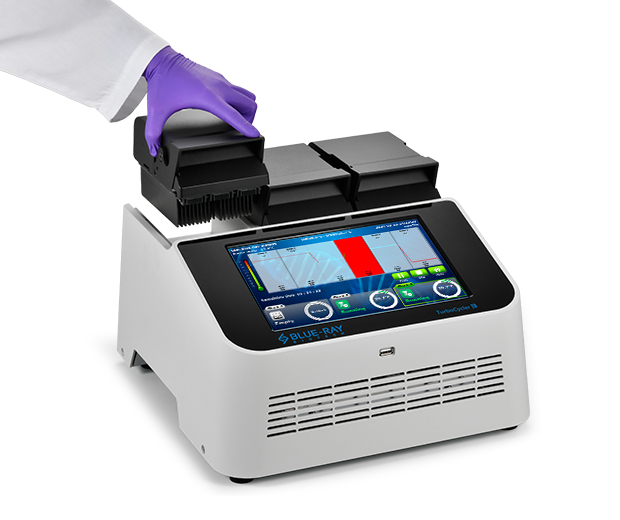

TurboCycler 3 is the most powerful high-throughput PCR thermal cycler in its class. Run 3 independent experiments (3x48 samples) simultaneously with unmatched flexibility. Fast gradient optimization and advanced ramp rate control tailor PCR conditions for maximized efficiency. These features unite to boost your research throughput.

Specifications

Sample Block

• 3 x 48 Well, Gradient Block: Compatible with 0.2 ml or 0.1 ml PCR tube, strip, non-skirted, and semi-skirted 48-well plate

Block Temperature

• Block Temperature Range: 4.0 - 100 °C
• Max. Heating / Cooling Rate: 5.0 °C/sec / 3.0 °C/sec
• Temperature Accuracy: +/- 0.3 °C
• Temperature Uniformity: +/- 0.4 °C
• Adjustable Ramp Rate: Yes, 0.1 - 5.0 °C/sec

Gradient Temperature

• Gradient Direction: Increase in vertical direction
• Gradient Temperature Range: 30 - 100 °C
• Gradient Temperature Difference: Max span 30 °C

Heater Lid

• Temperature Setting Range: 35 - 130 °C or off
• Temperature Accuracy: +/- 1.0 °C

Software

• Portability of Protocols: Save and transfer to another TurboCycler via USB flash drive
• Stored Program No.: > 4,000 sets
• Registered User Folder No.: 100 sets
• User Folder Password Protection: Yes
• Run Status Report: Yes, HTML output and transfer via USB flash drive
• Real-time Temp. Profile Export: Yes, CSV output and transfer via USB flash drive
• Tools: Tm calculator, Copy number convertor, Master mix preparation wizard

General

• Display: 10.1” color LCD with capacitive touch panel
• Data Port: 1 USB Type-A front port for USB flash drive
• Auto restart after Power Outage: Yes
• Footprint Dimensions (H x W x D): 236 mm x 356 mm x 362 mm
• Weight: 13 kg
• Power Supply: AC 100 - 240 V, 50/60 Hz, 1000 W
• Certification: CE
